Solar Energy Series

The solar power generation system consists of a solar panel array, a solar controller, and a storage battery (bank). If the output power is AC 220V or 110V, an inverter also needs to be configured. The functions of each part are as follows:

1. Solar Panel: The solar panel is the core and most valuable part of the solar power generation system. It converts solar energy into electrical energy, which can be stored in the storage battery or used to drive loads. The quality and cost of the solar panel directly determine those of the entire system.
2. Solar Controller: It controls the working state of the entire system and protects the storage battery from overcharging and over-discharging. In areas with large temperature differences, a qualified controller has a temperature compensation function. Additional functions such as light-controlled switches and time-controlled switches should be optional for the controller.
3. Storage Battery: It is generally used to store electricity. There are usually 12V and 24V types. In small systems, nickel-hydrogen batteries, nickel-cadmium batteries, or lithium batteries can also be used. Its role is to store the electricity generated by the solar panel during daylight hours and release it when needed.
4. Inverter: In many cases, AC 220V or AC 110V power supplies are required. Since the direct output of solar energy is generally DC 12V, DC 24V, or DC 48V, a DC-AC inverter is needed to convert the DC power generated by the solar power generation system into AC power to supply electrical appliances that require AC 220V. In some scenarios, when multiple voltage loads need to be used, a DC-DC converter is also used, such as converting 24VDC power into 5VDC power (note: this is not simply a voltage reduction).

Grid-Connected Solar Power Generation System

The grid-connected solar power generation system consists of solar cell modules, grid-connected inverters, distribution cabinets, etc. The system converts solar energy into electrical energy to generate current, and then sends the electrical energy to the grid through connectors and grid-connected inverters, and recovers it when needed. Grid-connected power generation has become one of the effective ways to utilize solar energy on a large scale, and will bring inestimable social benefits in reducing pollution, saving energy, and protecting the environment.

Basic Configuration of 10 kW Grid-Connected Solar System

Name	Specification
Solar Panel	170 W, 60 pieces
Panel Bracket	1 set
Distribution Box	1 set
Inverter Control Device	1 set
Monitoring Device	1 set

Off-Grid Solar Power Generation System

The off-grid solar power generation system, also known as the independent solar power generation system, is mainly composed of solar cell modules, battery banks, inverter systems (DC power supply does not require inversion), and solar control systems. The power generation capacity can be configured according to requirements. It is mainly used in areas without electricity far from the public power grid, households, and some special places for basic living and lighting electricity.

Basic Configuration of 10 kW Independent Solar Power Generation System

Name	Model	Quantity	Unit
Solar Panel	100 W, 18 V	108	Piece
Controller	DC 220 V, 50 A	1	Unit
Battery	2 V, 1000 Ah	111	Piece
Inverter	50 kW	1	Unit
AC Converter	AC 220 V, 50 A	1	Unit
Solar Panel Bracket	Non-standard	1	Set
Battery Box	Non-standard	1	Set
Wire Diameter	Customized by Client	—	—

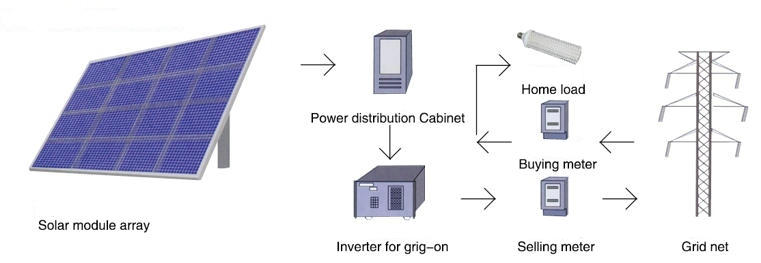

Summary Diagram of Grid-Connected Solar Power Generation System

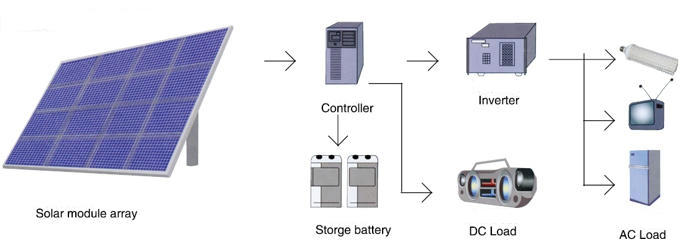

Summary Diagram of Independent Solar Power Generation System

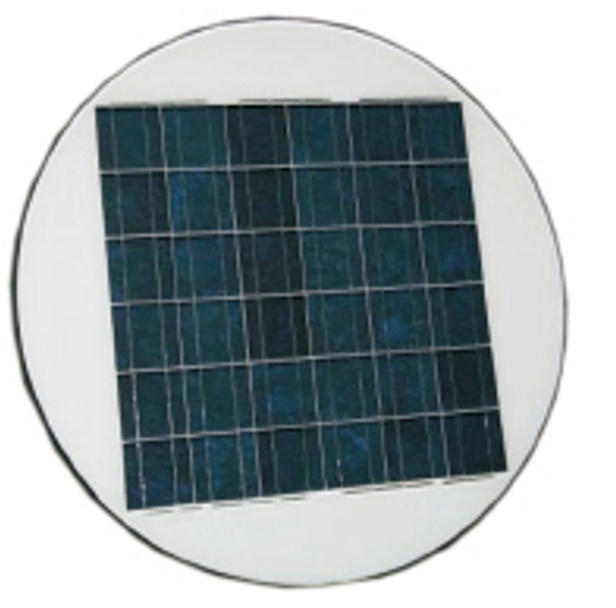

Solar Modules

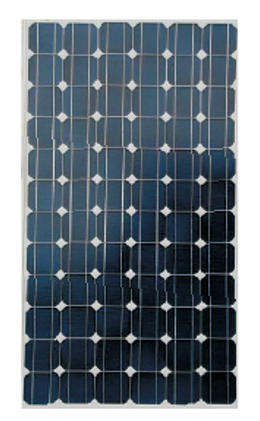

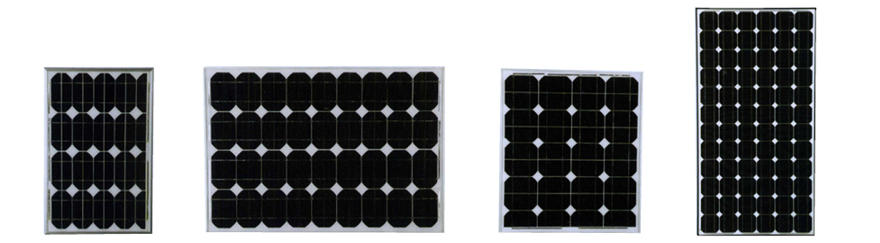

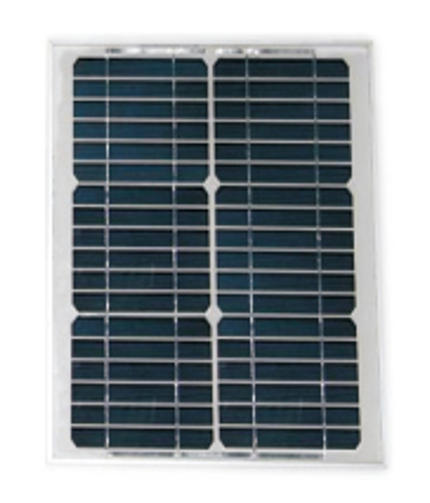

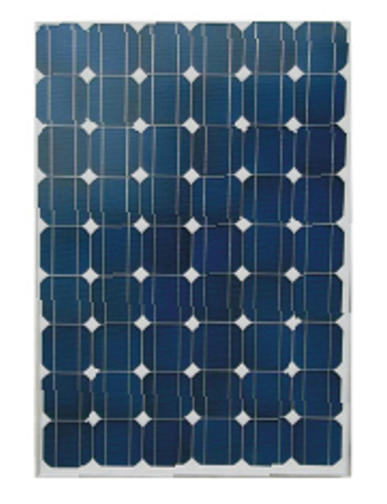

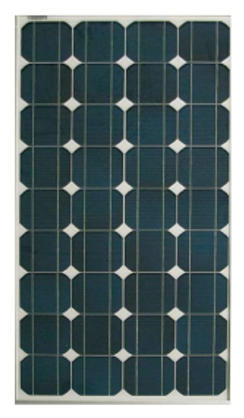

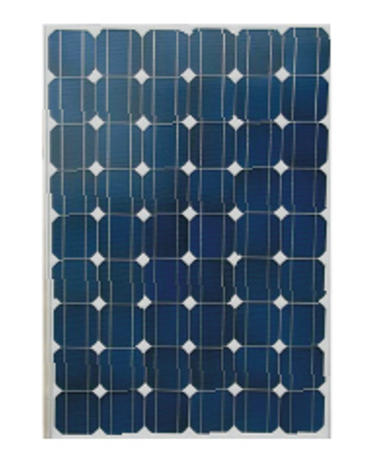

Monocrystalline Solar Modules

Mono Series	Electrical Specificatios					Product Size (mm)	N.G (kg s)
Model	/Pm(Wp)	/Vm(V)	/Im(A)	Voc(V)	Isc(A)
BH-501	5	8.7	0.58	10.6	0.64	280x190x18	0.6
BH-502	10	17.5	0.57	21.8	0.63	320x285x25	1
BH-503	20	17.3	1.16	21.4	1.27	440x450x25	2.1
BH-504	30	17.5	1.73	21.8	1.88	584x450x25	2.8
BH-505	40	17.3	2.33	21.4	2.51	626x545x35	3.9
BH-506	50	17.3	2.89	21.4	3.14	780x545x35	4.9
BH-507	60	17.3	3.46	21.4	3.76	905x545x35	5.7
BH-508	70	17.3	4.04	21.5	4.34	1040x545x35	6.8
BH-509	80	17.4	4.6	21.6	4.94	1185x545x35	7.7
BH-510	90	34.8	2.59	43.2	2.78	1220x545x35	8
BH-511	100	34.8	2.88	43.2	3.09	906x908x35	9.6
BH-512	110	34.8	3.17	43.2	3.4	1110x808x35	10.8
BH-513	120	34.8	3.45	43.2	3.7	1030x999x35	12.3
BH-514	130	34.8	3.74	43.2	4.01	1030x999x35	12.3
BH-515	140	34.8	4.03	43.2	4.32	1030x999x35	12.3
BH-516	150	34.8	4.32	43.2	4.63	1580x808x45	15.3
BH-517	160	35	4.58	43.5	4.9	1580x808x45	15.3
BH-518	170	35	4.85	43.5	5.21	1580x808x45	15.3
BH-519	180	35	5.12	43.5	5.52	1580x808x45	15.3
BH-520	190	35	5.43	43.5	5.82	1510x999x50	18.1
BH-521	200	35	5.72	43.5	6.13	1580x999x50	18.9
BH-522	210	35	6	43.5	6.44	1680x999x50	19.7
BH-523	220	35	6.29	43.5	6.74	1745x999x50	20.6
BH-524	230	35	6.58	43.5	7.05	1745x999x50	21.4
BH-525	240	35.6	6.75	44	7.22	1950x999x50	23.2
BH-526	250	35.6	7.03	44	7.53	1950x999x50	23.2
BH-527	260	35.6	7.31	44	7.83	1950x999x50	23.2

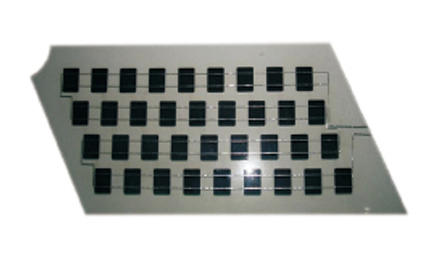

We can design the solar modules different size and specifications upon customers’ request to meet with your applications design.
